Nickel Metal Hydride Batteries

RAYWILL Ni-MH batteries are made of high quality materials. The main materials are imported from Japan. The positive can be made under Foamed or Sintered production procedure. This ensures the batteries high capacity and long cycle life, low internal resistance and low self-discharge.

Types of Nickel Metal Batteries:

AAAA Type	A Type	D Type
AAA Type	SC Type	Prismatic Type
AA Type	C Type	9V Type

Batteries Electrical Performance

1. Batteries Specifications

AAAA Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
XLAAAA700	8.5±0.5	66.5±0.5	700	735	70	700	13
XLAAAA600		75.0±0.5	600	630	60	600	15
XLAAAA500		65.5±0.5	500	525	50	500	12
AAAA300		41.5±0.5	300	315	30	300	7
2/3AAAA200		28.5±0.5	200	210	20	200	5

AAA Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
SLAAA1000	10.0±0.5	80.0±0.5	1000	1050	100	1000	23
XLAAA1100		66.5±0.5	1100	1155	110	1100	19
XLAAA950		66.5±0.5	950	997	95	950	18
LAAA800		49.5±0.5	800	840	80	800	16
LAAA700		49.5±0.5	700	735	70	700	14
AAA700		49.5±0.5	700	735	70	700	13
AAA600		43.5±0.5	600	630	60	600	12
TAAA550		42.0±0.5	550	577	55	550	11
4/5AAA500		37.5±0.5	500	525	50	500	9
SAAA450		35.5±0.5	450	472	45	450	9
2/3AAA300		28.0±0.5	300	315	30	300	7
1/2AAA210		21.5±0.5	210	220	21	210	7
2/5AAA200		20.5±0.5	200	210	20	200	6
1/3AAA100		14.5±0.5	100	105	10	100	4
1/4AAA80		10.5±0.5	80	84	8	80	2.4

AA Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
7/5AA1700	14.0±0.5	65.0±0.5	1700	1785	170	1700	35
AA1500		48.5±0.5	1500	1575	150	1500	26
AA1800		48.5±0.5	1800	1890	180	1800	28
AA1300		48.5±0.5	1300	1365	130	1300	26
AA1200		48.5±0.5	1200	1260	120	1200	25
AA1200H		48.5±0.5	1200	1260	120	1200	25
AA1100H		48.5±0.5	1100	1155	110	1100	23
4/5AA1200		42.5±0.5	1200	1260	120	1200	25
2/3AA650		28.5±0.5	650	682	65	650	14
2/3AA500		28.5±0.5	500	525	50	500	15
1/2AA500		24.5±0.5	500	525	50	500	11
1/3AA250		16.5±0.5	250	262	25	250	8

A Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
4/3AF3600	18.0±0.5	67.0±0.5	3600	3780	360	1800 for 2.5h	65
4/3A3000	17.5±0.5	66.5±0.5	3000	3150	300	1500 for 2.5h	52
4/3A2800H		66.5±0.5	2800	2940	280	1400 for 2.5h	55
4/5A1800		42.5±0.5	1800	1890	180	1800	33
4/5A1500H		42.5±0.5	1500	1575	150	1500	32
4/5A1400		42.5±0.5	1400	1470	140	1400	37
2/3A900		28.5±0.5	900	945	90	900	26
A2100		49.5±0.5	2100	2205	210	1500 for 2.5h	40
A1600		48.5±0.5	1600	1680	160	1600	38
1/2A100		28.5±0.5	1000	1050	100	1000	21
A1800H		49.5±0.5	1800	1890	180	1800	42

SC Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
SC2200	22.5±0.5	42.5±0.5	2200	2310	220	1100 for 2.5h	50
SC3000		42.5±0.5	3000	3150	300	1500 for 2.5h	60
SC2500		42.5±0.5	2500	2625	250	1250 for 2.5h	55
SC1800		42.5±0.5	1800	1890	180	1800	50
SC2800H		42.5±0.5	2800	2940	280	1400 for 2.5h	60

C Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
1/3C1100	25.5±05.	19.1±0.5	1100	1200	120	550 for 2.4h	30
C3000		49.0±0.5	3000	3150	300	1500 for 2.5h	80
C2500		49.0±0.5	2500	2625	250	1250 for 2.5h	70
C3500		49.0±0.5	3500	3675	350	1750 for 2.5h	80
C4000		49.5±0.5	4000	4200	400	2000 for 2.5h	80
C4500		49.0±0.5	4500	4600	450	1500 for 4h	90
C5000		49.0±0.5	5000	5000	500	2500 for 2.4h	95

D Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
D10000	32.5±0.5	60.0±0.5	10000	10000	1000	2000 for 7.5h	175
D9000		60.0±0.5	9000	9000	900	1800 for 7.5h	165
D8000		60.0±0.5	8000	8200	800	1600 for 7.5h	155
D7000		61.5±0.5	7000	7350	700	1400 for 7.5h	160
D6500		60.0±0.5	6500	6825	650	1300 for 7.5h	140
D4000		61.5±0.5	4000	4200	400	2000 for 7.5h	140
D2500		61.5±0.5	2500	2625	250	1250 for 2.5h	70
F11000		89.5±0.5	11000	11000	1100	2200 for 7.5h	235
F13000		89.5±0.5	13000	13000	1300	2600 for 7.5h	235

Prismatic Type:

Ref. No	Dimension (mm)	Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Dimension (mm)	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
F8	17.0X8.3X48.0	1100	1150	110	1100	24
2/3F8	17.0X8.3X35.0	800	840	80	800	17
7/5F6	17.0X6.1X67.0	1150	1200	115	1150	25
F6	17.0X6.1X48.0	750	780	75	750	18
4/5F6	17.0X6.1X36.0	500	525	50	500	13
2/3F6	17.0X6.1X34.0	450	472	45	450	12
3/5F6	17.0X6.1X30.0	400	420	40	400	11

9V Type:

Ref. No	Dimension (mm)		Capacity (mAh)		Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
Ref. No	Diameter	Height	Nominal	Typical	Standard charge current mA for 15 h	Fast charge current mA for 1.25 h	Approx. weight (g)
NH9V110	16.5X25.5X48.3		110	115	11	22for 7.5h	34
NH9V140	16.5X25.5X48.3		140	147	14	28for 7.5h	39
NH9V160	16.5X25.5X48.3		160	168	16	32for 7.5h	39
NH9V200	15.2X26.1X48.5		200	210	20	200	39

2. Electrical Performance

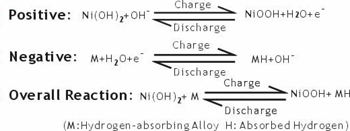

RAYWILL Battery use nickel hydroxide for the positive electrode, hydrogen absorbing alloys in its negative electrode, and potassium hydroxide solution in its electrolyte. The electro-chemical processes are described as below:

Charging:

For standard charging , we recommend constant current charging at 0.1C rate for 14-16hours at 20°C,Overcharge at 0.1C rate without time limit is allowed. For fast charging, we recommend a charging current of 0.5C rate to 1C rate , with the mandatory implementation of quick-charge termination methods . The termination methods include:
Temperature Cut-Off(TCO) of 55°Cmaximum , Rate -of -Temperature -Rise (dT/dt) of 0.7-0.8°C/min. Negative -Delta-Voltage method with 10-15mV/cell . Timer Control can also be applied ,for a capacity input of 120% of nominal. For maximum capacity , trickle charge can be applied after quick -charge is terminated. We recommend trickle-charge of 0.1C for 2 hours, or 0.2C for 1 hour.

Charge type	Charge current	Charge time	Temperature
Standard charge	0.1 C	15 h	0-50 C
Quick charge	0.5 C	2.5 h	0-50 C
Fast charge	1.0 C	1.2 h	0-50 C
Trickle charge	1/30-1/20 C	Continuously	0-35 C

Charge characteristics

Discharging:

At 20±2°C, it can be discharged continuously at 0.2C rate to 1.0V cut-off, or quick discharged continuously at 3Crate to 0.9V.

Discharge Characteristics

Cycle Life:

500 - 1000 charge/discharge cycles can be expected under normal use with a specific charger.

Cycle Life Characteristics
